Technical parameters:
Model |
YC-104AR/YC-110AR/YC-110AR-AU |
POE |
Yes |
Sensor |
1/2.8" Sony Exmor CMOS Sensor |
Effective pixels |
1080P(1920X1080) |

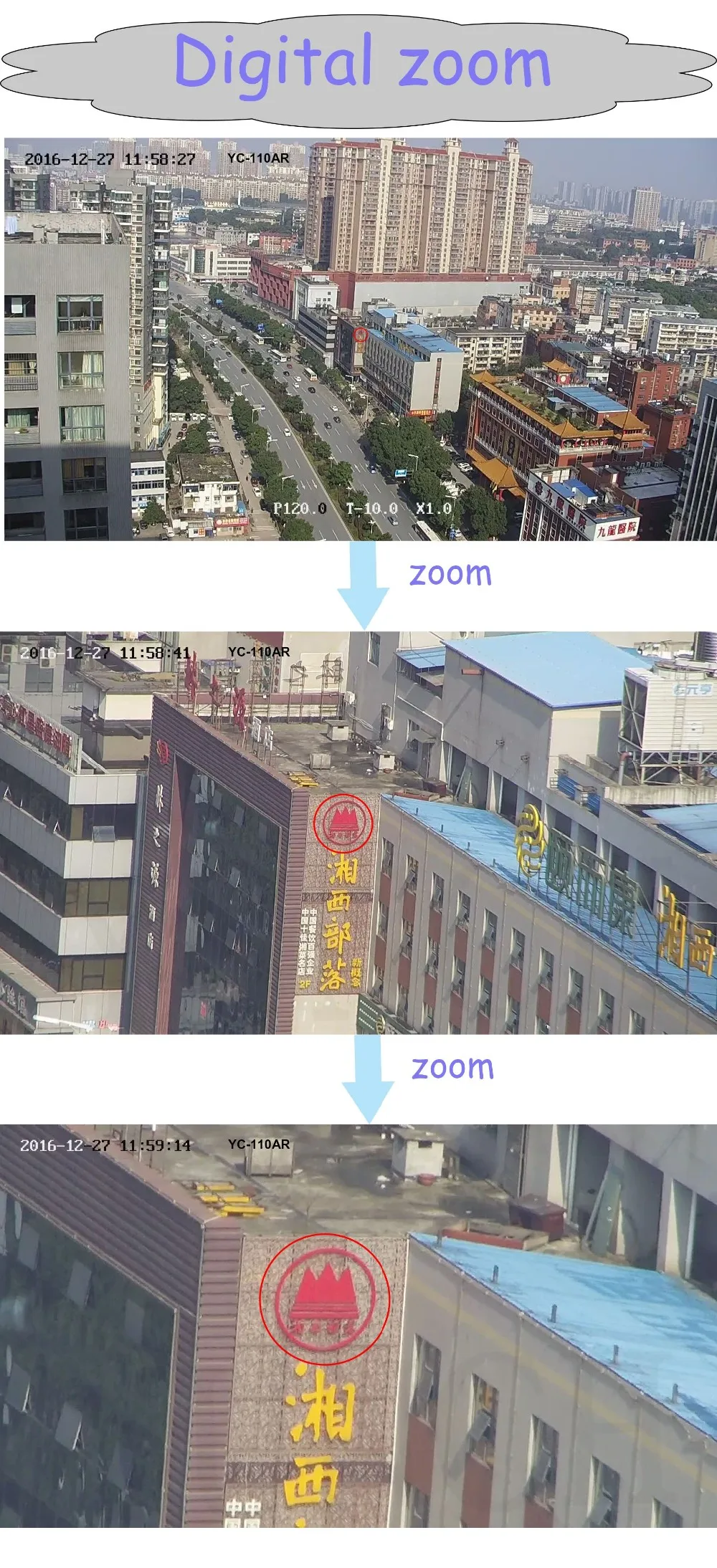

Zoom |
4/10X optical zoom |
Focus lenght |
5.1-51mm/2.8-12MM |
Day/night mode |
Automatic /multicolour /monochrome |
Focus mode |
Automatic/ manual |
Noise-signal ratio |
2D/3D-DNR |
Back light compensation |
Off/on |
White Balance |
Automatic/ Manual |
Electronic shutter |
1/25s ~ 1/300000s |
Gain control |
Automatic/ Manual |
Min illumination |
0lux (IR ON) |
Wide dynamic range |
Support |
Network parameter
Max image |
1920*1080 |
Double stream |
1080p+D1 |
Heartbeat function |
Support |
Security mechanism |
Password protection, multi user access is controlled |
Communications protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,UPnP,SNMP,802.1x,IPv6 (SIP,SRTP,optical), ONVIF |
Double stream |
Support |
Interface |

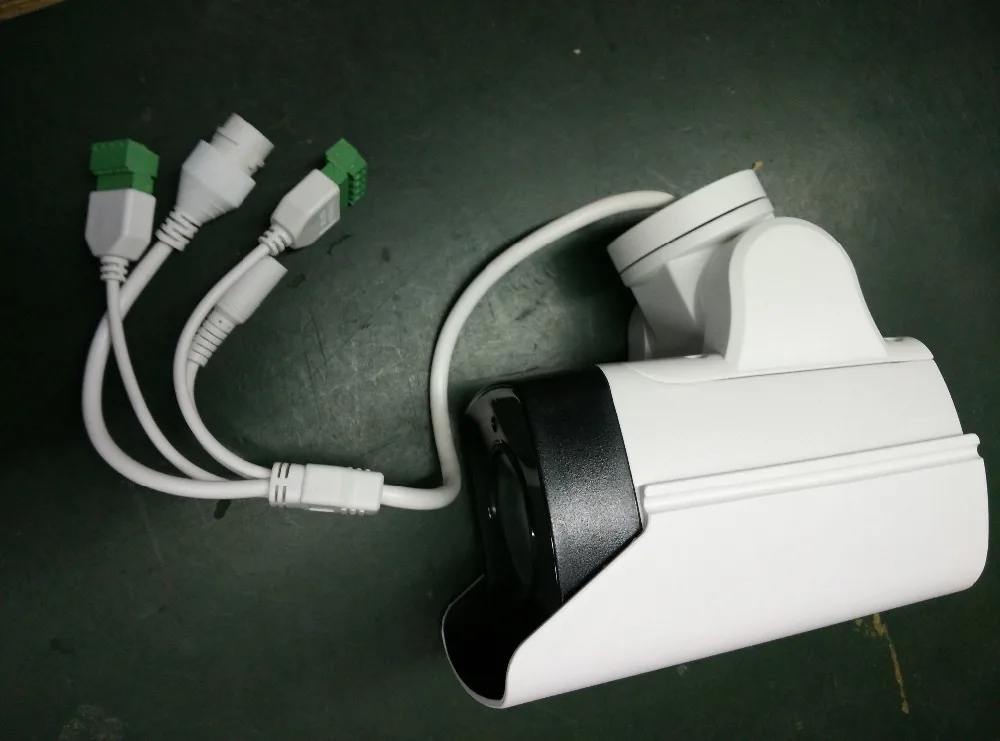

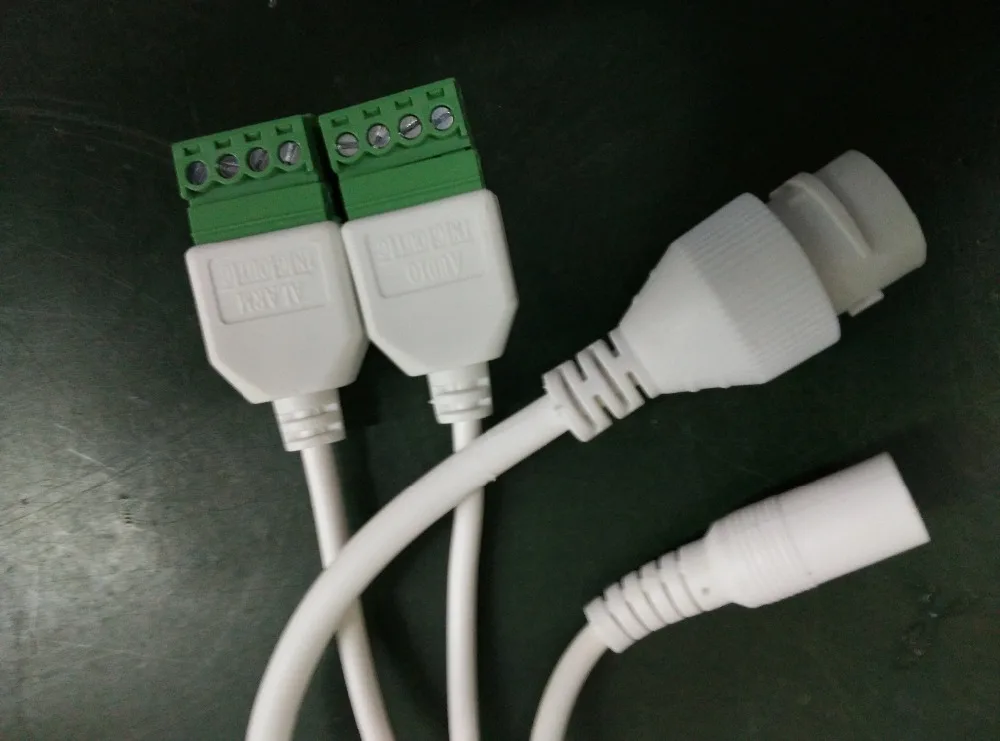

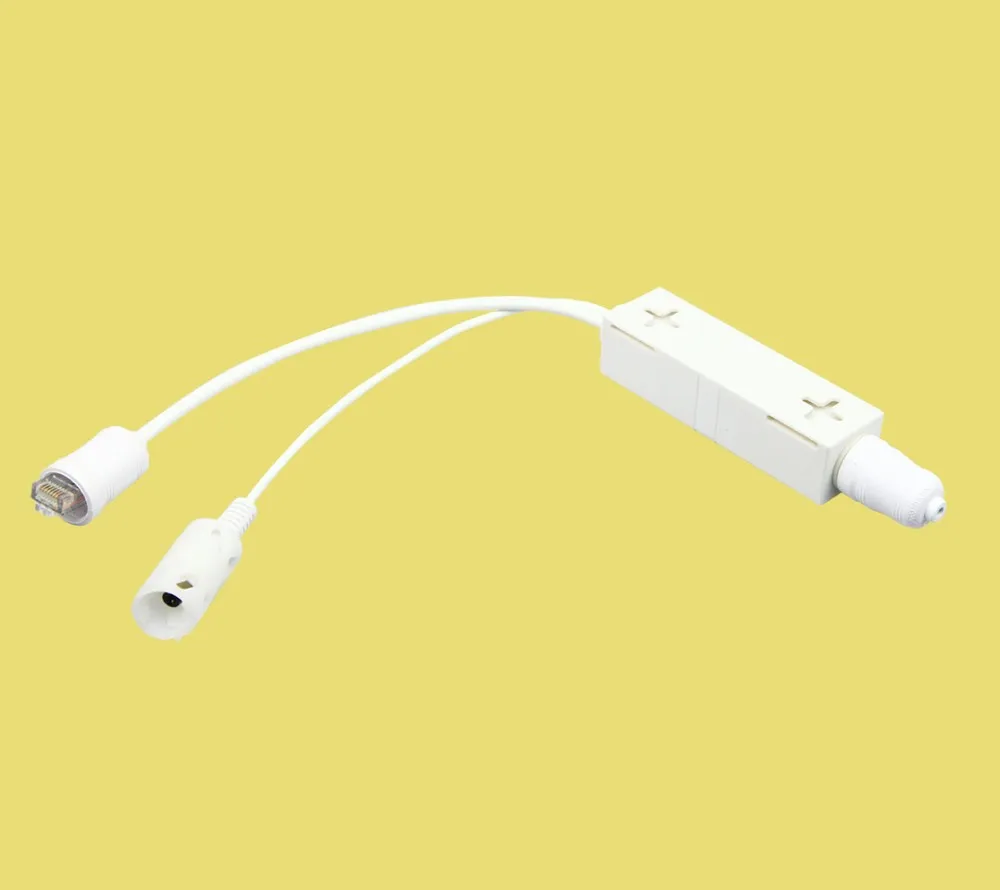

One network interface, one power input |
Infrared lamp
Infrared lamp
|
|
IR View Distance |
4 High power array LEDs with IR |
IR lamp control |
50m/80 meters
|
IR lamp consumption |
Automatic /manual / camera |
Mini camera
Pan speed |
Pan speed:0.5°~15°/s,speed is settable;pan preset speed:20°/s |
Tilt speed |
Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s |
Rotation |
Pan: 300° continuous rotation; Tilt: -5°~60° auto flip |
Preset |
255 presets ( Chinese title) |
Auto Scan |
8 groups, settable boundaries and scan speed |
Auto Cruise |
8 groups, each with 32 presets with settable time interval |
Pattern Tour |
4 groups, each with 500 instructions |
Video analysis |
Support |
Auto tracking |
Not Support |
OSD menu |
OSD menu with Chinese and English |
Heat dispersion structure |
Out Cool Air Circulation to Sink the Heat Technology |
Supply voltage |
DC12V±10% 1.2A |
Levels of protection |
IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design |
Working temperature |
-35-+55 |
Working humidity |
<90%,No condensation |
Consumption |
13W Max |
Weight |
0.92 Kg |

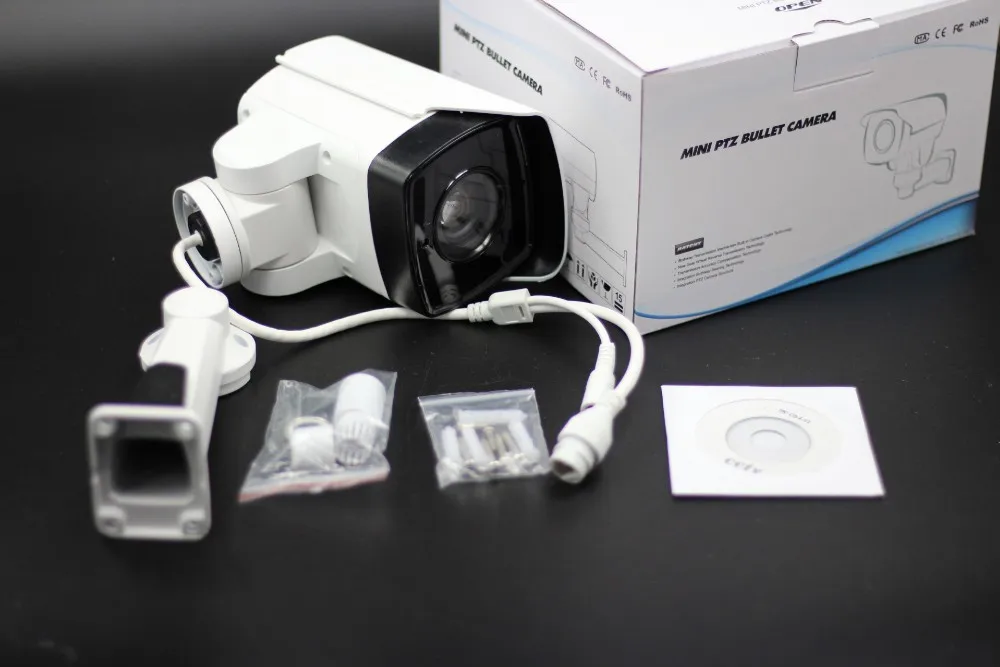

Accessory |
Wall-mount bracket |
Main features:
1:First Patent of Out Cool Air Circulation to Sink the Heat Technology.(Patent No.ZL201220269676.7)
2:First Patent of Video Analysis Light-adjustment Technology .(Patent No.201110089768.7)

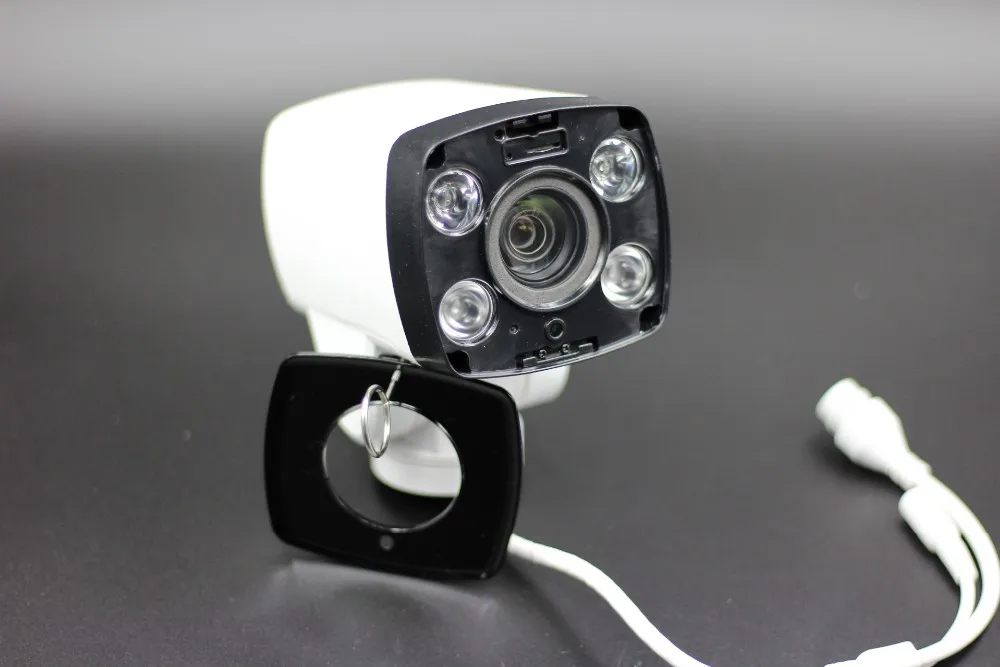

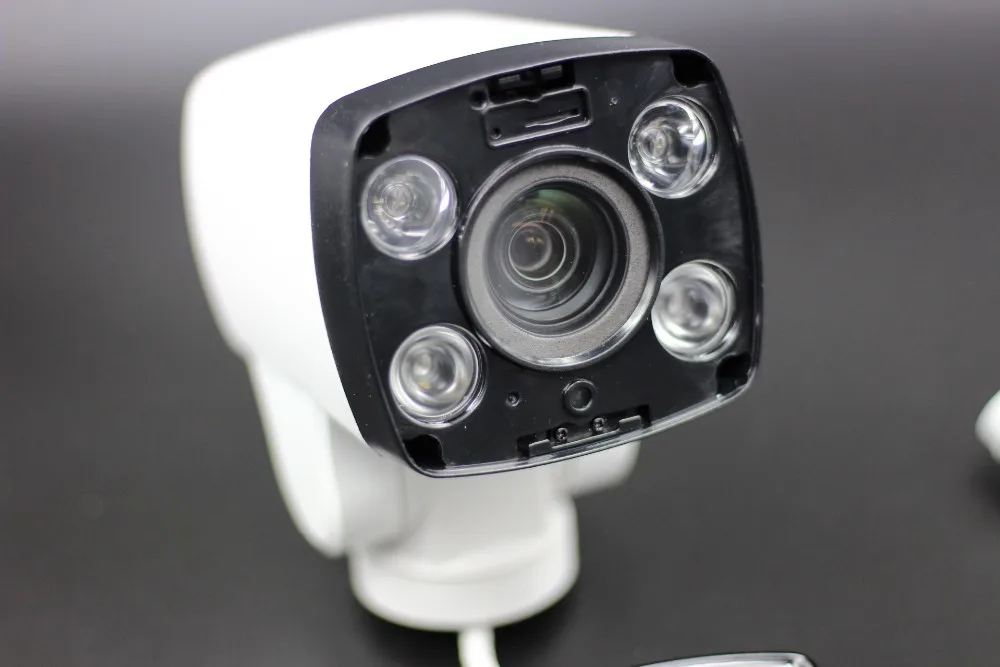

3: The Highly power array LEDs with IR range up to 80meters
4: Built-in digital HD module,the image can up to 1080p.
5 Built-in camera :4/10X optical zoom.
6: New Ambarella S2LM compression program,SONY HD Senor IMX322 CMOS.
7 OSD menu in Chinese and English system.
8:The working consumption of Infrared lamp can be set separately by menu,related with the optical zoom.
9:Illumination value of installation environment can be defected.
10:Intelligent temperature control design, can display real-time inside temperature of the dome camera.
11: Infrared light control software, suitable for various occasions
12: Automatic defrost and defog function( manual operation)
13: IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design.
- Unit Type: piece
- Package Weight: 2.0kg (4.41lb.)
- Package Size: 15cm x 15cm x 15cm (5.91in x 5.91in x 5.91in)
